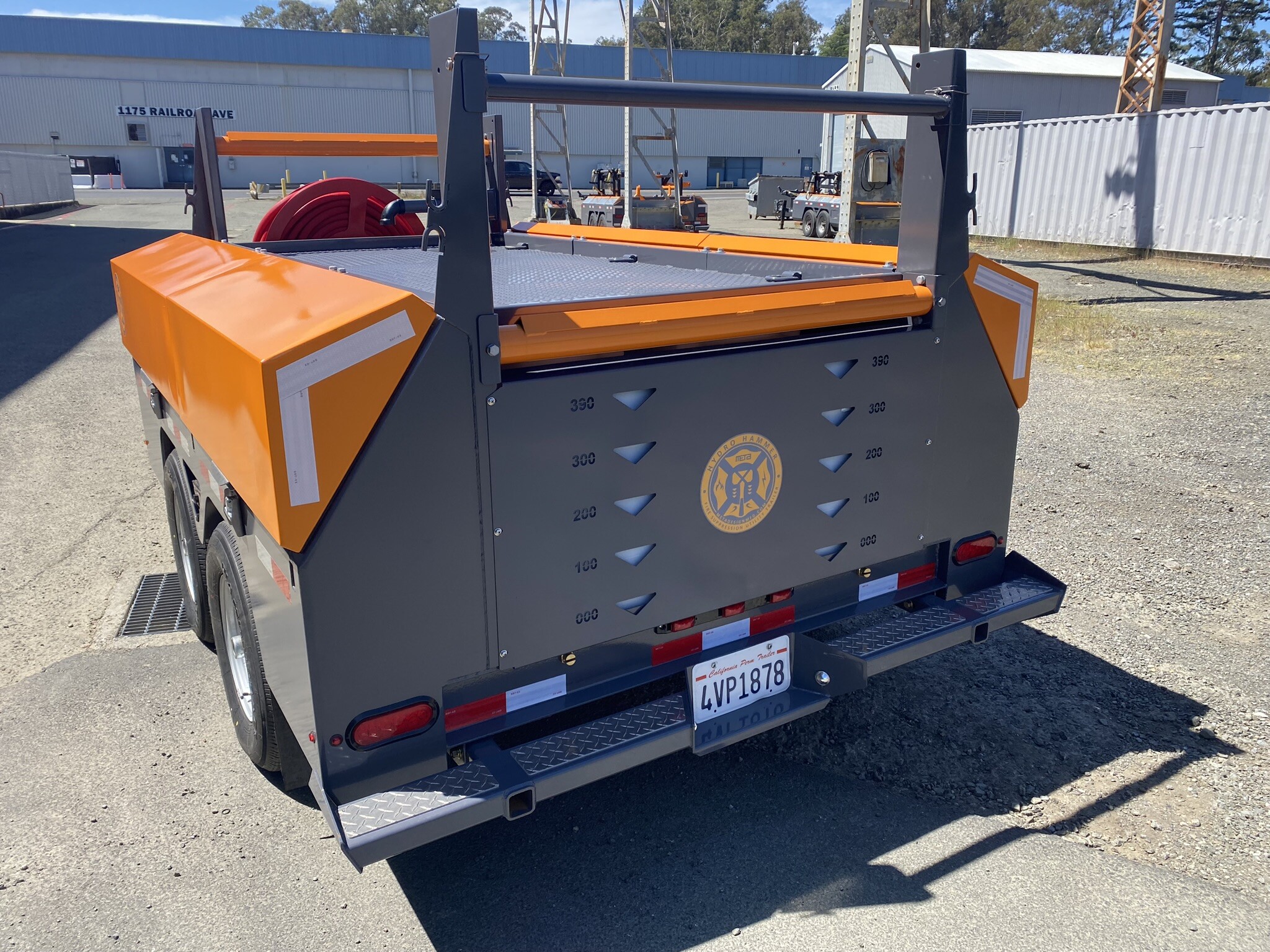

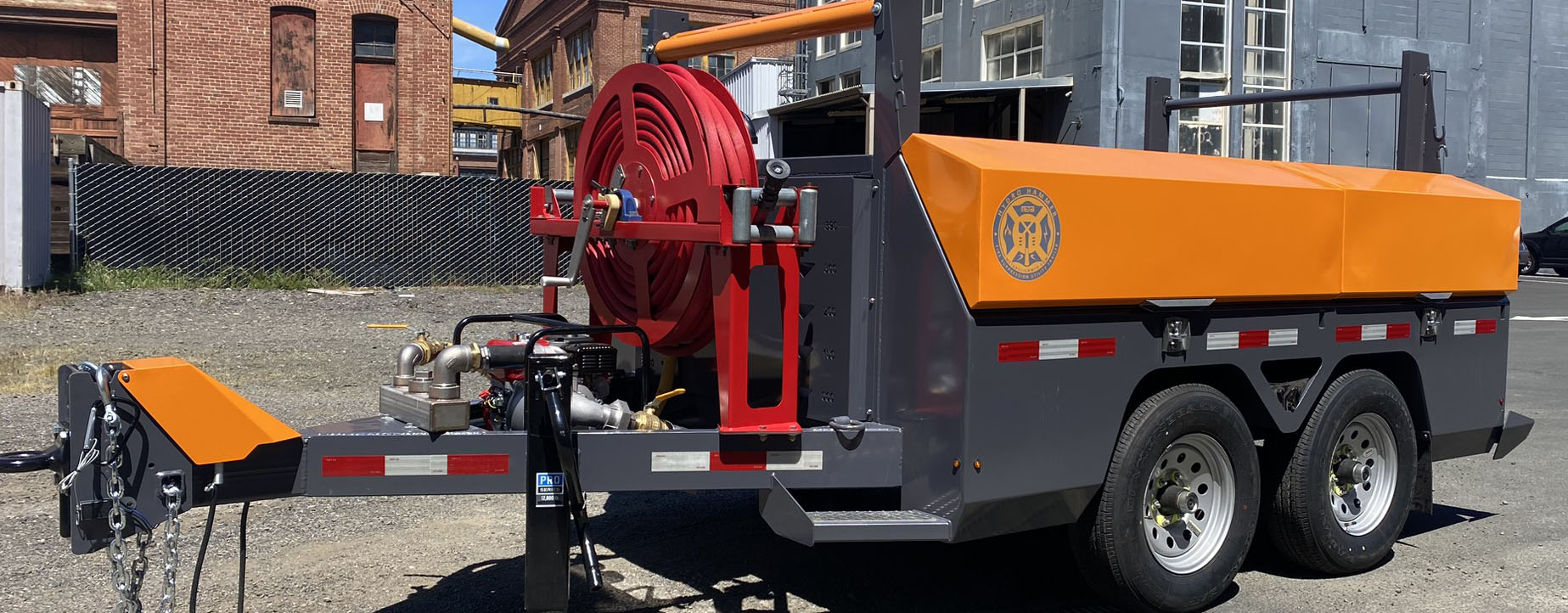

Fire Suppression Trailer

Specifications

WATER CAPACITY  390 GAL
GVWR  9,999 Lbs
UNLADEN WEIGHT  3,250 Lbs
WEIGHT W 390 GAL  6,500 Lbs
TIRES  Goodride 16” 10 ply Radial TWA
SIZE  235/80/16
WHEELS  16X6 8 Lug
TIRE PRESSURE  110 PSI
AXLES  Dexter Tandem Axle 12,000 Lbs Cap
BRAKES  Electric 8 X 6.5 1/2(85/70)
SPRINGS  6 Leaf Heavy Duty Slipper
LENGTH  24’
TOTAL WIDTH  80“
BED DIMENSIONS  4’W X 9’L X 4”D
CONNECTOR  Heavy Duty, 7-Pole, Round Pin
HITCH  42,000 Lb Drawbar Ring
SAFETY  Class 4 Safety Chain, Breakaway Kit

Specifications

WATER CAPACITY  390 GAL
GVWR  9,999 Lbs
UNLADEN WEIGHT  3,250 Lbs
WEIGHT W 390 GAL  6,500 Lbs
TIRES  Goodride 16” 10 ply Radial TWA
SIZE  235/80/16
WHEELS  16X6 8 Lug
TIRE PRESSURE  110 PSI
AXLES  Dexter Tandem Axle 12,000 Lbs Cap
BRAKES  Electric 8 X 6.5 1/2(85/70)
SPRINGS  6 Leaf Heavy Duty Slipper
LENGTH  24’
TOTAL WIDTH  80“
BED DIMENSIONS  4’W X 9’L X 4”D
CONNECTOR  Heavy Duty, 7-Pole, Round Pin
HITCH  42,000 Lb Drawbar Ring
SAFETY  Class 4 Safety Chain, Breakaway Kit

Description

Combination Trailer  for much more than just hauling water. Civil Crews and Line Crews can benefit from the racks, material tray, storage bins and even carry an occasional power pole when a pole trailer is too big or unavailable.

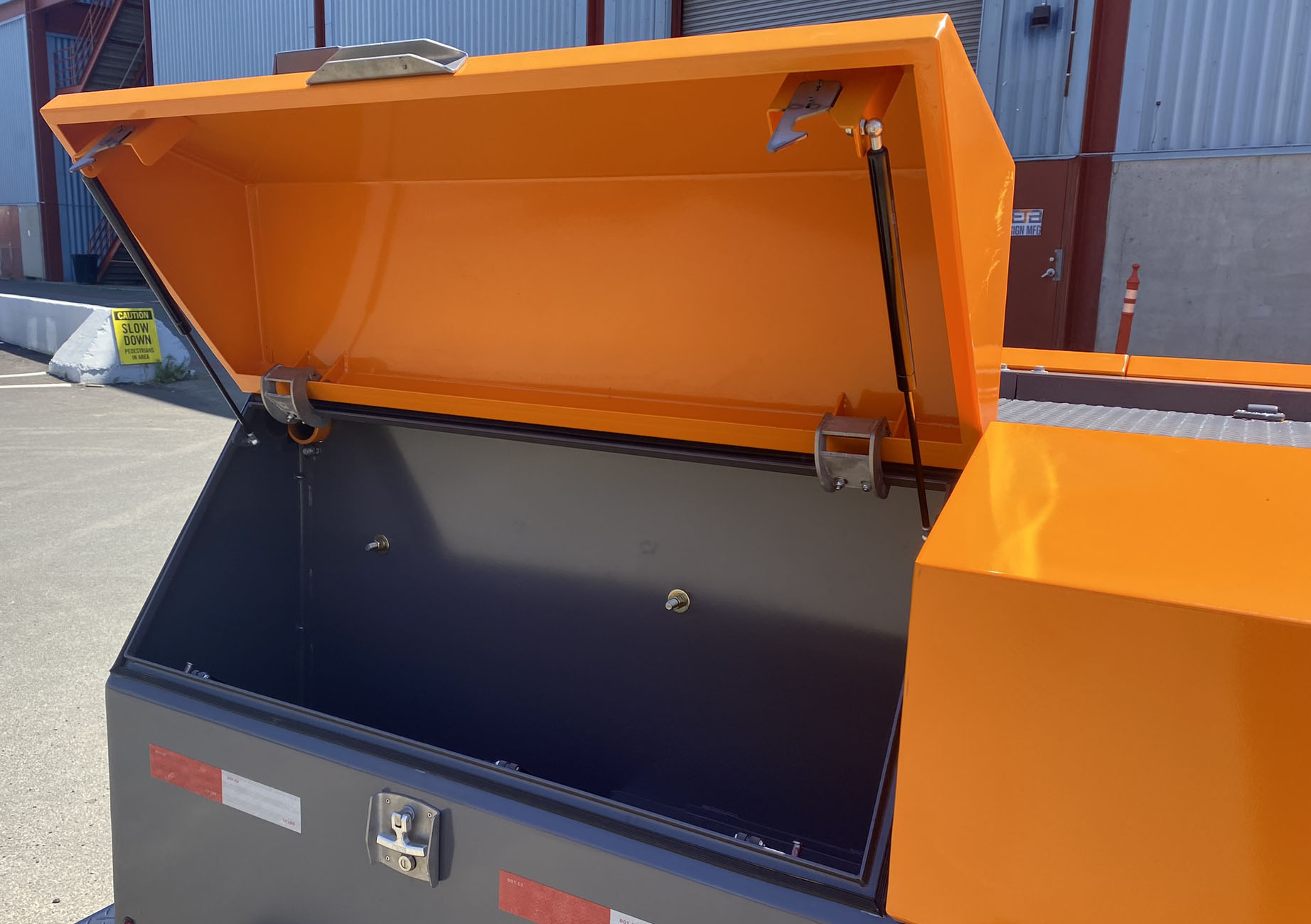

Don’t bring yet another truck or trailer to satisfy PRC S 4427,4428, or 4430 when our H2O Combo trailer offers 48 Cu Ft of Secure & Sealable storage for a complete set of compliant tools.

Efficiency & organization of inventory reduces material costs while saving a trip reduces personnel, fuel & time.

Road safety is why we designed this trailer with a lower center of gravity and self-baffling tanks to significantly improve handling.

Engineered for the task and tested by utility workers onsite, all our products can take the abuse of the most demanding projects.
